Tuesday, September 6, 2011

Inspiration from an Old Friend, Pt.5

We start with some unfinished business. Here is the picture of the base after masking from the last post. The second is after priming that I forgot to take last time. I also masked off the bottoms of all the walls, so I should have plenty of bare styrene to styrene  contact for solid glue joints.

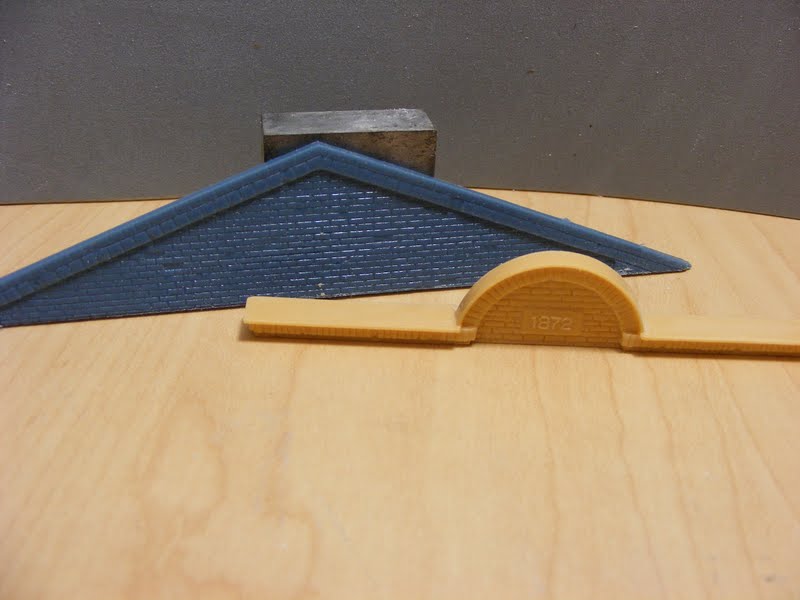

The yellow plastic was a cutoff  from the Weekly Herald kit that I used to make the railroad loading dock. I thought it would make a nice detail to the front wall. Unfortunately, the back of the piece had some ribs but no brickwork. The peaked wall from the Bakery kit was the perfect size to take care of that problem.

I removed the ribs from the back  and filed everything smooth. (The ribs were molded-in strips to register the placement of the front wall to the roof.)

I scribed the curved outline on the blue plastic.......

...............then rough cut it with a Dremel tool. A razor saw cut the straight lines, while a knife and file sweetened the curve.

Finally I glued the two together, and fine tuned the fit with a needle file, bringing the blue flush with the yellow.

To cover the seams, I wrapped the top with .010 x .250 styrene.

I let the glue dry overnight, then trimmed and filed the styrene flush with the brickwork. I then filed flat a section from the middle of the front wall. I haven't glued it down yet, but I think it will look nice.

Art had skylights on his building, and so will I. Here is the original roof with skylight, the window framework removed, and new angled skylight.

Art only used one, but I made a pair, meant to be used in tandem. Using scribed styrene sheet, I made two angled boxes, one taller that the other.

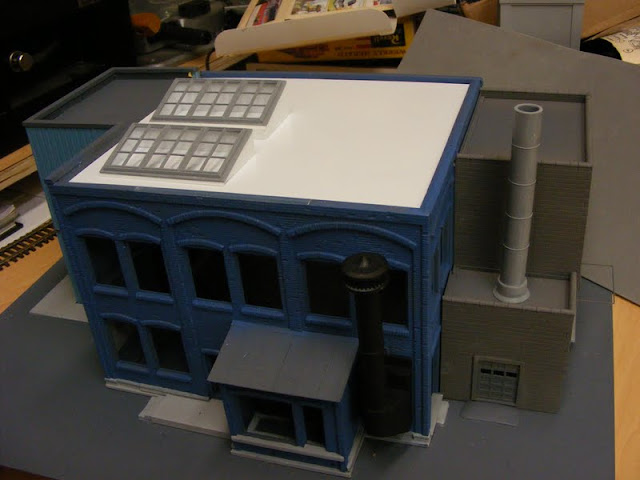

They are placed on the roof so the short one doesn't shadow the tall one. Speaking of the roof, well I finally have a roof. It is made from .040 smooth styrene, which I feel is thick enough to be self supporting. If any sagging starts to show, I won't hesitate to brace it.

I thought I might want to illuminate this as well  as the loading dock (which this sits over, so one bulb could do double-duty), so I cut out the roof under the skylights.

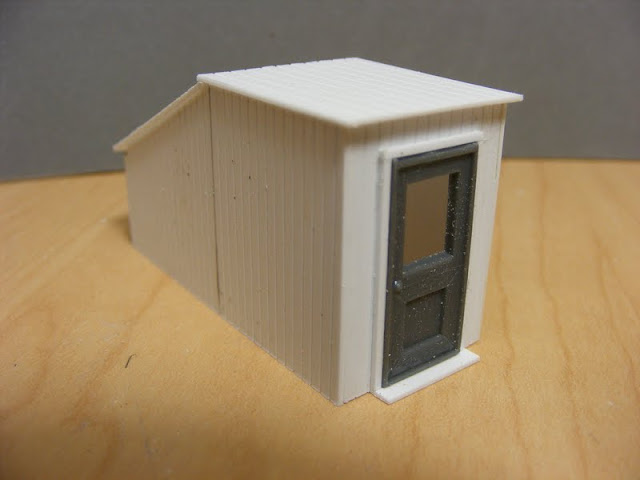

The roof needs access, so I built this stairway housing out of scribed styrene and a spare door. I did cut off the door's transom to lower it.

Some vents have also been added.

I wanted all the roof elements to be securely placed but not yet permanently attached. I drilled holes for the tubes glued to the bottom of the vents behind the skylights, and made platforms the fit the interiors of the other two vents and the stairwell.

OK, time to paint the window and door trim. Here is the loading dock masked off for the second time.

And this is the color I chose, only slightly darker than the kit's molded in green. Instead of going with a Polly-S railroad color, I used Vallejo Dark Green lightened with White and Bright Yellow.

I think it looks nice against the Conrail Blue of the building.

That's all for now. Next time I'll be working on more roof details, doing some painting, and we're pretty close to gluing all the walls together, so keep checking back. I hope you've enjoyed this project so far, and comments and questions are always welcome. Don

Friday, September 2, 2011

Inspiration from an Old Friend, Pt.4

I painted!  Let me be clear, I painted!  I reiterate,  I PAINTED!  I know, I can hardly believe it myself. Awwww, I'm jes funnin' y'all. No, I did paint, it's just not that big of an ordeal as I make it out to be. Usually the paint bench is covered in the over-flow of my other projects. If I need to set something down, and there's no place on the workbench, I just drop it on the pile on the paint bench.  (To paint, I had to move all the 'junk' to the mobile table. Not an ideal solution.)

As I said last time, I had reached the point where I had to paint before I could finish construction. Here is the base with steps and sidewalk attached. The masking tape covers where the walls will glue to the base. (I hate to scrape paint off flat surfaces to get a good glue joint.) Next I primed the whole base with dark gray Painter's Touch Primer by Rustoleum. White and  Red-Brown primers are also available from them. Modellers all have their favorite primers, and  these are the only ones I use. After the primer had dried, I masked around the steps and sidewalk. (I'm sorry, but I forgot to take pictures of this.)

Remember I was deciding which shade of blue to use? I went with a shade midway between them. The one kit's plastic was so dark, it almost didn't seem real. The other kit's was light enough to be blue-gray. This is Polly-S Conrail Blue. (Just a little lighter than Game's Workshop's Ultramarine Blue, which I would have used if I had a can left from my Space Marines fling.) I masked off everything but the brickwork.

Removing masking tape is a messy business. You want to remove the tape as soon as possible after spraying. I let the paint dry overnight before masking off everything but the bottom 'concrete' section.

The dock and rear wall together. The wall did not need any masking, except for some strips on the backside where it will be glued.

The front with Annex.

Leftover cement blocks and a fan from a kit window, and I've blocked up two windows. (There will be a smokestack rising there.)

Here you can see one of my goofs. There was a fair amount of paint bleed-under around the doors and vents. This is partly due to not burnishing the tape tight enough to the plastic, and partly to my impatience. I had finished painting the brickwork blue, and cleaned the airbrush, when I decided the trim on the new addition should be the same color blue. Instead of loading the airbrush up again, I decided to hand paint. The problem was I really loaded the brush and slathered it on. It wicked up under the tape. Had I used the airbrush, I wouldn't have had this problem at all. Oh well, a few minutes with a scribe and a chisel blade, and the evidence was mostly gone.

The back wall. I brush painted all the foundations, the stoop, and the steps with my choice of light gray to represent 'concrete.' Also notice the primered base.

The sidewalk on the end, it has some nice cracks in it which will show up after weathering. This was such a large piece that I sprayed it rather than brushing. (Actually, after brush painting all the foundations, I went back with the airbrush and carefully filled-in and evened-out.) Wooo, I need to install some stairs under that upper door before someone gets hurt.

The steps to the dock are 'concrete' too. The fan housing is flat aluminum.

Once the wall sections are glued to the base and to each other (and it won't be long), open joints like the one between the block and the brick will disappear.  The next major construction will be the roof for the center section. Another major consideration is what color to paint the window frames. The kit's are molded in a light green, which I kind of like. Plus, I don't want to stray too far from Art's vision.

OK, a little unfinished business. I never really showed the results of thinning the roof over the Annex, from the last post. Here are a couple of shots so you can judge if it was worth the effort.

That's all for now. Tune in next time to see my choice of green for the trim work. Thanks for looking. Don
